%load_ext autoreload
%autoreload 2

if "dependencies_installed" not in globals():
    !git clone https://github.com/MPC-Berkeley/barc_gym.git --depth 1
    !pip install -r barc_gym/requirements.txt
    !pip install -e barc_gym/gym-carla
    !pip install -e barc_gym/mpclab_common
    !pip install -e barc_gym/mpclab_controllers
    !pip install -e barc_gym/mpclab_simulation
    dependencies_installed = True

import site
import warnings
site.main()
warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=RuntimeWarning)

import numpy as np
import gymnasium as gym
import gym_carla
from matplotlib import pyplot as plt
from loguru import logger

from mpclab_common.pytypes import PythonMsg
from dataclasses import dataclass, field


@dataclass
class PIDParams(PythonMsg):
    """
    This is a template for PID Parameters.
    Make sure you understand what each parameter means,
    but DON'T MODIFY ANYTHING HERE!
    """
    dt: float = field(default=0.1)  # The frequency of the controller
    Kp: float = field(default=2.0)  # The P component.
    Ki: float = field(default=0.0)  # The I component.
    Kd: float = field(default=0.0)  # The D component.

    # Constraints
    int_e_max: float = field(default=100)
    int_e_min: float = field(default=-100)
    u_max: float = field(default=None)
    u_min: float = field(default=None)
    du_max: float = field(default=None)
    du_min: float = field(default=None)

    # References
    u_ref: float = field(default=0.0)  # Input reference
    x_ref: float = field(default=0.0)  # PID state reference

from typing import Tuple

class PID():
    '''
    Base class for PID controller
    Meant to be packaged for use in actual controller (eg. ones that operate directly on vehicle state) since a PID controller by itself is not sufficient for vehicle control
    See PIDLaneFollower for a PID controller that is an actual controller
    '''
    def __init__(self, params: PIDParams = PIDParams()):
        self.dt             = params.dt

        self.Kp             = params.Kp             # proportional gain
        self.Ki             = params.Ki             # integral gain
        self.Kd             = params.Kd             # derivative gain

        # Integral action and control action saturation limits
        self.int_e_max      = params.int_e_max
        self.int_e_min      = params.int_e_min
        self.u_max          = params.u_max
        self.u_min          = params.u_min
        self.du_max         = params.du_max
        self.du_min         = params.du_min

        self.x_ref          = params.x_ref  # PID State reference
        self.u_ref          = params.u_ref  # Input reference
        self.u_prev         = 0             # Internal buffer for previous input

        self.e              = 0             # error
        self.de             = 0             # finite time error difference
        self.ei             = 0             # accumulated error

        self.initialized = True

    def solve(self, x: float,
                u_prev: float = None) -> Tuple[float, dict]:
        if not self.initialized:
            raise(RuntimeError('PID controller is not initialized, run PID.initialize() before calling PID.solve()'))

        if self.u_prev is None and u_prev is None: u_prev = 0
        elif u_prev is None: u_prev = self.u_prev

        info = {'success' : True}

        # Compute error terms
        e_t = x - self.x_ref
        de_t = (e_t - self.e)/self.dt
        ei_t = self.ei + e_t*self.dt

        # Anti-windup
        if ei_t > self.int_e_max:
            ei_t = self.int_e_max
        elif ei_t < self.int_e_min:
            ei_t = self.int_e_min

        # Compute control action terms
        P_val  = self.Kp * e_t
        I_val  = self.Ki * ei_t
        D_val  = self.Kd * de_t

        u = -(P_val + I_val + D_val) + self.u_ref

        # Compute change in control action from previous timestep
        du = u - u_prev

        # Saturate change in control action
        if self.du_max is not None:
            du = self._saturate_rel_high(du)
        if self.du_min is not None:
            du = self._saturate_rel_low(du)

        u = du + u_prev

        # Saturate absolute control action
        if self.u_max is not None:
            u = self._saturate_abs_high(u)
        if self.u_min is not None:
            u = self._saturate_abs_low(u)

        # Update error terms
        self.e  = e_t
        self.de = de_t
        self.ei = ei_t

        self.u_prev = u
        return u, info

    def set_x_ref(self, x_ref: float):
        self.x_ref = x_ref
        # reset error integrator
        self.ei = 0
        # reset error, otherwise de/dt will skyrocket
        self.e = 0

    def set_u_ref(self, u_ref: float):
        self.u_ref = u_ref

    def clear_errors(self):
        self.ei = 0
        self.de = 0

    def set_params(self, params:  PIDParams):
        self.dt             = params.dt

        self.Kp             = params.Kp             # proportional gain
        self.Ki             = params.Ki             # integral gain
        self.Kd             = params.Kd             # derivative gain

        # Integral action and control action saturation limits
        self.int_e_max      = params.int_e_max
        self.int_e_min      = params.int_e_min
        self.u_max          = params.u_max
        self.u_min          = params.u_min
        self.du_max         = params.du_max
        self.du_min         = params.du_min

    # Below are helper functions that might be helpful in debugging.
    def get_refs(self) -> Tuple[float, float]:
        return (self.x_ref, self.u_ref)

    def get_errors(self) -> Tuple[float, float, float]:
        return (self.e, self.de, self.ei)

    # Below are clipping functions to enforce hard constraints.
    def _saturate_abs_high(self, u: float) -> float:
        return np.minimum(u, self.u_max)

    def _saturate_abs_low(self, u: float) -> float:
        return np.maximum(u, self.u_min)

    def _saturate_rel_high(self, du: float) -> float:
        return np.minimum(du, self.du_max)

    def _saturate_rel_low(self, du: float) -> float:
        return np.maximum(du, self.du_min)

from mpclab_controllers.abstract_controller import AbstractController
from mpclab_common.pytypes import VehicleState

class PIDLaneFollower(AbstractController):
    '''
    Class for PID throttle and steering control of a vehicle
    Incorporates separate PID controllers for maintaining a constant speed and a constant lane offset

    target speed: v_ref
    target lane offset_ x_ref
    '''
    def __init__(self, dt: float,
                steer_pid_params: PIDParams = None,
                speed_pid_params: PIDParams = None):
        if steer_pid_params is None:
            steer_pid_params = PIDParams()
            steer_pid_params.dt = dt
            steer_pid_params.default_steer_params()
        if speed_pid_params is None:
            speed_pid_params = PIDParams()
            speed_pid_params.dt = dt
            speed_pid_params.default_speed_params()  # these may use dt so it is updated first

        self.dt = dt
        steer_pid_params.dt = dt
        speed_pid_params.dt = dt

        self.steer_pid_params = steer_pid_params
        self.speed_pid_params = speed_pid_params

        self.steer_pid = PID(self.steer_pid_params)
        self.speed_pid = PID(self.speed_pid_params)

        self.lat_ref = steer_pid_params.x_ref
        self.steer_pid.set_x_ref(0)  # For simplicity, we will just follow the center line in this problem. DO NOT MODIFY!

        self.requires_env_state = False
        return

    def reset(self):
        # Reinstantiate the two PID controllers.
        self.steer_pid = PID(self.steer_pid_params)
        self.speed_pid = PID(self.speed_pid_params)

    def initialize(self, **args):
        return

    def solve(self, *args, **kwargs):
        raise NotImplementedError

    def step(self, vehicle_state: VehicleState, env_state = None):
        v = vehicle_state.v.v_long

        vehicle_state.u.u_a, _ = self.speed_pid.solve(v)

        # Weighting factor: alpha*x_trans + beta*psi_diff
        alpha = 5.0
        beta = 1.0
        vehicle_state.u.u_steer, _ = self.steer_pid.solve(alpha*(vehicle_state.p.x_tran - self.lat_ref) + beta*vehicle_state.p.e_psi)
        return np.array([vehicle_state.u.u_a, vehicle_state.u.u_steer])

    def get_prediction(self):
        return None

    def get_safe_set(self):
        return None

#@markdown ## Set PID parameters
#@markdown ### Steering PID Parameters
Kp_steer = 0.85 #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Ki_steer = 0  #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Kd_steer = 0.05  #@param {type:"slider", min:0.0, max:2.0, step:0.05}

#@markdown ### Speed PID Parameters
Kp_speed = 0.3 #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Ki_speed = 0  #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Kd_speed = 0  #@param {type:"slider", min:0.0, max:2.0, step:0.05}
reference_speed = 1.0  #@param

# Some other global parameters. Don't modify them!
seed = 42
dt = 0.1

pid_steer_params = PIDParams(dt=dt,
                             Kp=Kp_steer, # Use the parameters from the sliders above.
                             Ki=Ki_steer,
                             Kd=Kd_steer,
                             u_max=0.436,
                             u_min=-0.436,
                             du_max=4.5,
                             du_min=-4.5,
                             x_ref=0.0,  # Offset from the center line. Set to 0 to follow the center line.
                             )

pid_speed_params = PIDParams(dt=dt,
                             Kp=Kp_speed,
                             Ki=Ki_speed,
                             Kd=Kd_speed,
                             u_max=2.0,
                             u_min=-2.0,
                             du_max=20.0,
                             du_min=-20.0,
                             x_ref=reference_speed,  # Reference speed.
                             )
pid_controller = PIDLaneFollower(dt, pid_steer_params, pid_speed_params)

# Create an instance of the simulator.
env = gym.make('barc-v0',
               track_name='L_track_barc',
               do_render=True,
               max_n_laps=2,  # Feel free to modify this.
               in_colab=True,
               )
env.unwrapped.bind_controller(pid_controller)

# Reset the car to the starting line, with an initial velocity of 0.5 m/s.
_, info = env.reset(seed=seed, options={'spawning': 'fixed'})

truncated = False # Flag indicating whether the car is at a terminal state.

# Reset the PID controller (clear the errors).
pid_controller.reset()

lap_time = []  # Keep track of the lap times.

while not truncated:
    action = pid_controller.step(vehicle_state=info['vehicle_state']) # Call the controller to get the steering and speed commands.
    _, _, terminated, truncated, info = env.step(action) # Apply the action on the car and get the updated state.

    if terminated:
        lap_time.append(info['lap_time'])  # Keep track of the time it took to finish a lap.

logger.info(f"Average lap time: {np.mean(lap_time):.1f} s. Std: {np.std(lap_time):.1f} s.")
logger.info("Rollout truncated.")

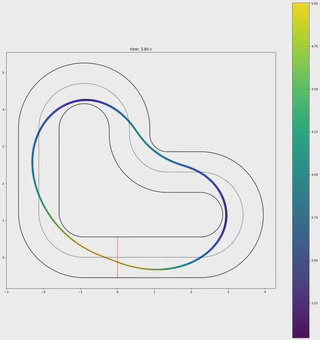

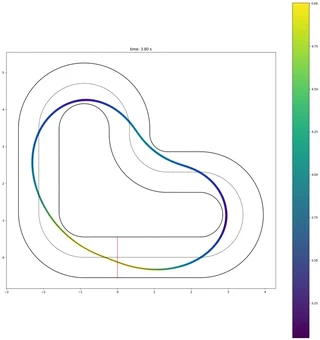

env.unwrapped.show_debug_plot()

render_animation = False  #@param {type:"boolean"}

if render_animation:
    from IPython.display import HTML
    animation = env.unwrapped.visualizer.get_animation()
    print(f"Please wait for the animation to be rendered. Estimated total wait time: {len(env.unwrapped.v_buffer) * 0.25:.1f} s. ")
    display(HTML(animation.to_html5_video()))

compare_with_hardware_data = False  #@param {type:"boolean"}
group_name = "group_1" #@param {type:"string"}

if compare_with_hardware_data:
    import pandas as pd
    from google.colab import files
    import os

    while not os.path.exists(f'{group_name}.csv'):
        print(f"Data file {group_name}.csv not found. Please upload it here.")
        uploaded = files.upload()
    df = pd.read_csv(f'{group_name}.csv', delimiter=',')
    # df = pd.read_csv(f'{group_name}.csv', delimiter=',')

    fig, axes = plt.subplots(2, 2, figsize=(9, 9))
    ((ax_traj, ax_v), (ax_u_a, ax_u_steer)) = axes
    start_idx = np.where((df['u_a'] != 0) & (df['u_steer'] != 0) & (df['v_long'] >= 0.5))[0][0]
    t = df['t'][start_idx:]
    t = (t - t.min()) / 1e9

    env.unwrapped.get_track().plot_map(ax=ax_traj)
    ax_traj.plot(df['x'][start_idx:], df['y'][start_idx:], label='hardware')
    ax_traj.set_title("Trajectory Playback")
    ax_traj.set_xlabel('x(m)')
    ax_traj.set_ylabel('y(m)')

    ax_v.plot(t, df['v_long'][start_idx:], label='hardware')
    ax_v.set_title("Velocity playback")
    ax_v.set_xlabel('t(s)')
    ax_v.set_ylabel('v(m/s)')

    ax_u_a.plot(t, df['u_a'][start_idx:], label='hardware')
    ax_u_a.set_title("Acceleration input playback")
    ax_u_a.set_xlabel('t(s)')
    ax_u_a.set_ylabel('$u_a$')

    ax_u_steer.plot(t, df['u_steer'][start_idx:], label='hardware')
    ax_u_steer.set_title('Steering input playback')
    ax_u_steer.set_xlabel('t(s)')
    ax_u_steer.set_ylabel('$u_{steer}$')

    env.unwrapped.show_debug_plot(axes)

    for ax in axes.flatten():
        ax.legend()

    plt.show()

%%writefile my_script.py
from mpclab_controllers.abstract_controller import AbstractController
from mpclab_common.pytypes import VehicleState

class PIDRacelineFollower(AbstractController):
    '''
    Class for PID throttle and steering control of a vehicle
    Incorporates separate PID controllers for maintaining a constant speed and a constant lane offset

    target speed: v_ref
    target lane offset_ x_ref
    '''
    def __init__(self, dt: float,
                steer_pid_params: PIDParams = None,
                speed_pid_params: PIDParams = None):
        if steer_pid_params is None:
            steer_pid_params = PIDParams()
            steer_pid_params.dt = dt
            steer_pid_params.default_steer_params()
        if speed_pid_params is None:
            speed_pid_params = PIDParams()
            speed_pid_params.dt = dt
            speed_pid_params.default_speed_params()  # these may use dt so it is updated first

        self.dt = dt
        steer_pid_params.dt = dt
        speed_pid_params.dt = dt

        self.steer_pid_params = steer_pid_params
        self.speed_pid_params = speed_pid_params

        self.steer_pid_params.x_ref = 0  # TODO: This is temporary. Properly implement this.
        self.speed_pid_params.x_ref = 0  # TODO: This is temporary. Properly implement this.

        self.steer_pid = PID(self.steer_pid_params)
        self.speed_pid = PID(self.speed_pid_params)

        self.lat_ref = steer_pid_params.x_ref

        self.requires_env_state = False
        return

    def reset(self):
        # Reinstantiate the two PID controllers.
        self.steer_pid = PID(self.steer_pid_params)
        self.speed_pid = PID(self.speed_pid_params)

    def initialize(self, **args):
        return

    def solve(self, *args, **kwargs):
        raise NotImplementedError

    def step(self, vehicle_state: VehicleState, reference=None):
        # """
        # Reference solution (needs more test to get it to work):

        v_ref, x_tran_ref, psi_ref = reference['x0'], reference['x5'], reference['x3']
        u0_ref, u1_ref = reference['u0'], reference['u1']

        v = vehicle_state.v.v_long
        vehicle_state.u.u_a, _ = self.speed_pid.solve(v - v_ref)

        # Weighting factor: alpha*x_trans + beta*psi_diff
        alpha = 5.0
        beta = 1.0
        vehicle_state.u.u_steer, _ = self.steer_pid.solve(alpha*(vehicle_state.p.x_tran - x_tran_ref) + beta* (vehicle_state.p.e_psi - psi_ref))
        return np.array([vehicle_state.u.u_a, vehicle_state.u.u_steer])
        # """
        raise NotImplementedError
        # ============YOUR CODE HERE===============
        vehicle_state.u.u_a = TODO
        vehicle_state.u.u_steer = TODO
        # ============END YOUR CODE================
        return np.array([vehicle_state.u.u_a, vehicle_state.u_steer])

    def get_prediction(self):
        return None

    def get_safe_set(self):
        return None

from google.colab import files
files.download('my_script.py')

import numpy as np
import os
from google.colab import files


class Raceline:
    def __init__(self, raceline_file='raceline.npz'):
        while not os.path.exists(raceline_file):
            print(f"Raceline data file {raceline_file} is not found. Please upload it here. ")
            uploaded = files.upload()
        data = np.load(raceline_file)
        self.s, self.ey, self.epsi, self.vx, self.vy, self.epsi_dot, self.t, self.u0, self.u1 = map(np.array, (data['s'], data['e_y'], data['e_psi'], data['v_long'], data['v_tran'], data['psidot'], data['t'], data['u_a'], data['u_s']))

    def get_reference(self, _s, speed_scaling=1.):
        # interp = lambda yp: np.interp(_s, self.s, yp)
        # ey_ref, epsi_ref, vx_ref, vy_ref, epsi_dot_ref, t_ref, u0_ref, u1_ref = map(interp, (self.ey, self.epsi, self.vx, self.vy, self.epsi_dot, self.t, self.u0, self.u1))

        ey_ref = np.interp(_s, self.s, self.ey)
        epsi_ref = np.interp(_s, self.s, self.epsi)
        vx_ref = np.interp(_s, self.s, self.vx) * speed_scaling  # TODO: This is just a trick to scale down the speed to make the raceline easier to track. PROPERLY IMPLEMENT THIS!
        vy_ref = np.interp(_s, self.s, self.vy)
        epsi_dot_ref = np.interp(_s, self.s, self.epsi_dot)
        t_ref = np.interp(_s, self.s, self.t)
        u0_ref = np.interp(_s, self.s, self.u0)
        u1_ref = np.interp(_s, self.s, self.u1)
        return {
            's': _s,
            'x0': vx_ref,
            'x1': vy_ref,
            'x2': epsi_dot_ref,
            'x3': epsi_ref,
            'x4': t_ref,
            'x5': ey_ref,
            'u0': u0_ref,
            'u1': u1_ref,
        }

    def plot_raceline(self, ax):
        svec = self.s
        Psi = self.epsi[0]
        X, Y = [0], [self.ey[0]]
        for j in range(1,len(svec)):
            sj = svec[j]
            deltaT = self.t[j] - self.t[j-1]
            Psi = Psi + deltaT * self.epsi_dot[j]
            X.append(X[j-1] + deltaT * (self.vx[j] * np.cos(Psi) - self.vy[j] * np.sin(Psi)))
            Y.append(Y[j-1] + deltaT * (self.vx[j] * np.sin(Psi) + self.vy[j] * np.cos(Psi)))
        ax.plot(X, Y, c='r', ls='--', label='raceline')

Raceline().get_reference(1)  # TODO: Remove this debugging command.

%%writefile config.py
#@markdown ## Set PID parameters
#@markdown ### Steering PID Parameters
Kp_steer = 0.25 #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Ki_steer = 0.1  #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Kd_steer = 0.05  #@param {type:"slider", min:0.0, max:2.0, step:0.05}

#@markdown ### Speed PID Parameters
Kp_speed = 0.3 #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Ki_speed = 0  #@param {type:"slider", min:0.0, max:2.0, step:0.05}
Kd_speed = 0  #@param {type:"slider", min:0.0, max:2.0, step:0.05}

# Some other global parameters. Don't modify them!
seed = 42
dt = 0.1

pid_steer_params_raceline_follower = PIDParams(dt=dt,
                             Kp=Kp_steer, # Use the parameters from the sliders above.
                             Ki=Ki_steer,
                             Kd=Kd_steer,
                             u_max=0.436,
                             u_min=-0.436,
                             du_max=4.5,
                             du_min=-4.5,
                             x_ref=0.0,  # Offset from the center line. Set to 0 to follow the center line.
                             )

pid_speed_params_raceline_follower = PIDParams(dt=dt,
                             Kp=Kp_speed,
                             Ki=Ki_speed,
                             Kd=Kd_speed,
                             u_max=2.0,
                             u_min=-2.0,
                             du_max=20.0,
                             du_min=-20.0,
                             x_ref=reference_speed,  # Reference speed.
                             )
pid_controller = PIDLaneFollower(dt, pid_steer_params, pid_speed_params)

# Create an instance of the simulator.
path_follower = PIDRacelineFollower(dt=dt, steer_pid_params=pid_steer_params_raceline_follower, speed_pid_params=pid_speed_params_raceline_follower)
raceline = Raceline()

env = gym.make('barc-v0',
               track_name='L_track_barc',
               do_render=True,
               max_n_laps=50,  # Feel free to modify this.
               in_colab=True,
               )
env.unwrapped.bind_controller(path_follower)

# Reset the car to the starting line, with an initial velocity of 0.5 m/s.
_, info = env.reset(seed=seed, options={'spawning': 'fixed'})

truncated = False # Flag indicating whether the car is at a terminal state.

# Reset the PID controller (clear the errors).
path_follower.reset()

lap_time = []  # Keep track of the lap times.

while not truncated:
    reference = raceline.get_reference(info['vehicle_state'].p.s, speed_scaling=0.7)
    action = path_follower.step(vehicle_state=info['vehicle_state'], reference=reference) # Call the controller to get the steering and speed commands.
    _, _, terminated, truncated, info = env.step(action) # Apply the action on the car and get the updated state.
    if terminated:
        lap_time.append(info['lap_time'])  # Keep track of the time it took to finish a lap.

logger.info(f"Average lap time: {np.mean(lap_time):.1f} s. Std: {np.std(lap_time):.1f} s.")
logger.info("Rollout truncated.")

fig, axes = plt.subplots(2, 2, figsize=(9, 9))
env.unwrapped.show_debug_plot(axes)
raceline.plot_raceline(ax=axes[0][0])
for ax in axes.flatten():
    ax.legend()
plt.show()

import sys
IN_COLAB = 'google.colab' in sys.modules
if IN_COLAB:
#   !pip install -q pyomo
  !apt-get install -y -qq glpk-utils
  !wget -N -q "https://matematica.unipv.it/gualandi/solvers/ipopt-linux64.zip"
  !unzip -o -q ipopt-linux64

# Original code at: https://github.com/MPC-Berkeley/barc_gym/blob/main/mpclab_common/mpclab_common/tracks/solve_raceline.py

import numpy as np
from pyomo.environ import *
from pyomo.dae import *
import pandas as pd

from mpclab_common.pytypes import BodyAngularVelocity, BodyLinearVelocity, ParametricPose, VehicleState, VehicleActuation
# from mpclab_common.track import get_track

def compute_raceline(track, vehicle_config, vehicle_constraints,
                     obj_num=0,
                     raceline_to_avoid=None,
                     track_tightening=0,
                     constant_width=False):

    #SYSTEM STATES:  vx=x[0],  vy=x[1], wz=x[2] ,e_psi=x[3], t=x[4], e_y=x[5]
    #SYSTEM INPUTS:  ax[m/s^2]=u0, steering(rad)=u1
    #INDEPENDENT VARIABLE IS s (space)

    lf = vehicle_config.wheel_dist_front
    lr = vehicle_config.wheel_dist_rear

    mass = vehicle_config.mass
    Iz = vehicle_config.yaw_inertia

    tire_model = vehicle_config.tire_model

    mu = vehicle_config.wheel_friction
    Br = vehicle_config.pacejka_b_rear
    Bf = vehicle_config.pacejka_b_front
    Cr = vehicle_config.pacejka_c_rear
    Cf = vehicle_config.pacejka_c_front
    Dr = vehicle_config.pacejka_d_rear
    Df = vehicle_config.pacejka_d_front

    xu_ub = vehicle_constraints['xu_ub']
    xu_lb = vehicle_constraints['xu_lb']
    du_ub = vehicle_constraints['du_ub']
    du_lb = vehicle_constraints['du_lb']

    v_long_max = xu_ub.v.v_long
    v_long_min = xu_lb.v.v_long
    v_tran_max = xu_ub.v.v_tran
    v_tran_min = xu_lb.v.v_tran
    psidot_max = xu_ub.w.w_psi
    psidot_min = xu_lb.w.w_psi
    e_psi_max = xu_ub.p.e_psi
    e_psi_min = xu_lb.p.e_psi
    if constant_width:
        e_y_max = track.half_width - track_tightening
        e_y_min = -(track.half_width - track_tightening)
    else:
        # e_y_max = xu_ub.p.x_tran
        # e_y_min = xu_lb.p.x_tran
        e_y_max = 1e9
        e_y_min = -1e9

    a_max = xu_ub.u.u_a
    a_min = xu_lb.u.u_a
    steer_max = xu_ub.u.u_steer
    steer_min = xu_lb.u.u_steer

    a_rate_max = du_ub.u_a
    a_rate_min = du_lb.u_a
    steer_rate_max = du_ub.u_steer
    steer_rate_min = du_lb.u_steer

    print('=================== Raceline computation ===================')
    if track.circuit:
        print('Track is a circuit')
    else:
        print('Track is not a circuit')
    if constant_width:
        print('Using constant width')
    else:
        print('Using varying width')
    # print('Track name: %s' % track_name)
    # print('     - length: %g m' % track.track_length)
    # print('     - avg width: %g m' % (track.half_width*2))
    print('Vehicle configuration:')
    print('     - center of mass to front axle: %g m' % lf)
    print('     - center of mass to rear axle: %g m' % lr)
    print('     - mass: %g kg' % mass)
    print('     - yaw inertia: %g kg m^2' % Iz)
    print('     - tire model: %s' % tire_model)
    print('     - tire friction coefficient: %g' % mu)
    print('     - Front tires:')
    print('         - B: %g' % Bf)
    print('         - C: %g' % Cf)
    print('         - D: %g' % Df)
    print('     - Rear tires:')
    print('         - B: %g' % Br)
    print('         - C: %g' % Cr)
    print('         - D: %g' % Dr)
    print('Vehicle input constraints:')
    print('     - max acceleration: %g m/s^2' % a_max)
    print('     - min acceleration: %g m/s^2' % a_min)
    print('     - max steering angle: %g rad' % steer_max)
    print('     - min steering angle: %g rad' % steer_min)
    print('Vehicle state constraints:')
    print('     - max longitudinal velocity: %g m/s' % v_long_max)
    print('     - min longitudinal velocity: %g m/s' % v_long_min)
    print('     - max lateral velocity: %g m/s' % v_tran_max)
    print('     - min lateral velocity: %g m/s' % v_tran_min)
    print('     - max yaw rate: %g rad/s' % psidot_max)
    print('     - min yaw rate: %g rad/s' % psidot_min)
    print('============================================================')

    m = ConcreteModel()
    m.sf = Param(initialize=track.track_length)
    m.s = ContinuousSet(bounds=(0, m.sf))

    m.alpha_f   = Var(m.s, initialize=0)
    m.alpha_r   = Var(m.s, initialize=0)
    m.Fyf       = Var(m.s,bounds=(-mass*9.8, mass*9.8), initialize=0)
    m.Fyr       = Var(m.s,bounds=(-mass*9.8, mass*9.8), initialize=0)
    m.x0        = Var(m.s, bounds=(v_long_min, v_long_max), initialize=v_long_min)
    m.x1        = Var(m.s, bounds=(v_tran_min, v_tran_max), initialize=0)
    m.x2        = Var(m.s, bounds=(psidot_min, psidot_max), initialize=0)
    m.x3        = Var(m.s, bounds=(e_psi_min, e_psi_max))
    m.x4        = Var(m.s, bounds=(0, 20000), initialize=0)
    m.x5        = Var(m.s, bounds=(e_y_min, e_y_max), initialize=0)
    m.u0        = Var(m.s, bounds=(a_min, a_max), initialize=0)
    m.u1        = Var(m.s, bounds=(steer_min, steer_max), initialize=0)
    m.du0       = Var(m.s, bounds=(a_rate_min, a_rate_max), initialize=0)
    # m.du0       = Var(m.s, initialize=0)
    m.du1       = Var(m.s, bounds=(steer_rate_min, steer_rate_max), initialize=0)
    # m.du1       = Var(m.s, initialize=0)

    m.dx0ds = DerivativeVar(m.x0, wrt=m.s)
    m.dx1ds = DerivativeVar(m.x1, wrt=m.s)
    m.dx2ds = DerivativeVar(m.x2, wrt=m.s)
    m.dx3ds = DerivativeVar(m.x3, wrt=m.s)
    m.dx4ds = DerivativeVar(m.x4, wrt=m.s)
    m.dx5ds = DerivativeVar(m.x5, wrt=m.s)
    m.du0ds = DerivativeVar(m.u0, wrt=m.s)
    m.du1ds = DerivativeVar(m.u1, wrt=m.s)

    # to avoid divide by 0
    eps=0.000001

    #Objective function
    if obj_num == 0:
        m.obj = Objective(expr=m.x4[m.sf], sense=minimize)
    elif obj_num == 1:
        m.obj = Objective(expr=m.x4[m.sf] + 0.1*sum(m.du1ds[i] for i in m.s), sense=minimize)
    elif obj_num == 2:
        m.obj = Objective(expr=m.x4[m.sf] + 0.01*sum(m.du1ds[i] for i in m.s), sense=minimize)
    elif obj_num == 3:
        m.obj = Objective(expr=m.x4[m.sf] + 0.001*sum(m.du1ds[i] for i in m.s), sense=minimize)
    elif obj_num == 4:
        m.obj = Objective(expr=m.x4[m.sf] + 0.005*sum(m.du1ds[i] for i in m.s), sense=minimize)
    elif obj_num == 5:
        # Penalized lap time, inputs, and input rates
        m.obj = Objective(expr=m.x4[m.sf] + 0.01*sum(m.du0ds[i]**2 for i in m.s) + 0.01*sum(m.du1ds[i]**2 for i in m.s), sense=minimize)
        # m.obj = Objective(expr=m.x4[m.sf] + 0.01*sum(m.du0[i]**2 for i in m.s) + 0.01*sum(m.du1[i]**2 for i in m.s), sense=minimize)
        # m.obj = Objective(expr=m.x4[m.sf] + 0.001*sum(m.u0[i]**2 for i in m.s) + 0.001*sum(m.u1[i]**2 for i in m.s) + 0.01*sum(m.du0ds[i]**2 for i in m.s) + 0.01*sum(m.du1ds[i]**2 for i in m.s), sense=minimize)

    #sideslip and lateral force
    def _alphafc(m, s):
        return m.alpha_f[s] == m.u1[s] - atan((m.x1[s] + lf * m.x2[s])/ (m.x0[s]))
    m.c4 = Constraint(m.s, rule=_alphafc)
    def _alpharc(m, s):
        return m.alpha_r[s] == -atan((m.x1[s] - lr * m.x2[s])/ (m.x0[s]))
    m.c3 = Constraint(m.s, rule=_alpharc)

    if tire_model == 'linear':
        def _Fyfc(m, s):
            return m.Fyf[s] ==  Df * Cf * Bf * m.alpha_f[s]
        m.c2 = Constraint(m.s, rule=_Fyfc)
        def _Fyrc(m, s):
            return m.Fyr[s] ==  Dr * Cr * Br * m.alpha_r[s]
        m.c1 = Constraint(m.s, rule=_Fyrc)
    elif tire_model == 'pacejka':
        def _Fyfc(m, s):
            return m.Fyf[s] ==  Df * sin(Cf * atan(Bf * m.alpha_f[s]))
        m.c2 = Constraint(m.s, rule=_Fyfc)
        def _Fyrc(m, s):
            return m.Fyr[s] ==  Dr * sin(Cr * atan(Br * m.alpha_r[s]))
        m.c1 = Constraint(m.s, rule=_Fyrc)

    #Differential model definition
    def _x0dot(m, s):
        cur = track.get_curvature(s)
        return m.dx0ds[s] == (m.u0[s] - 1 / mass *  m.Fyf[s] * sin(m.u1[s]) + m.x2[s]*m.x1[s])*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    m.x0dot = Constraint(m.s, rule=_x0dot)

    def _x1dot(m, s):
        cur = track.get_curvature(s)
        return m.dx1ds[s] == (1 / mass * (m.Fyf[s] * cos(m.u1[s]) + m.Fyr[s]) - m.x2[s] * m.x0[s])*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    m.x1dot = Constraint(m.s, rule=_x1dot)

    def _x2dot(m, s):
        cur = track.get_curvature(s)
        return m.dx2ds[s] == (1 / Iz *(lf*m.Fyf[s] * cos(m.u1[s]) - lr * m.Fyr[s]) )*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    m.x2dot = Constraint(m.s, rule=_x2dot)

    def _x3dot(m, s):
        cur = track.get_curvature(s)
        return m.dx3ds[s] == ( m.x2[s]*(1 - cur * m.x5[s])/(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])) - cur)
    m.x3dot = Constraint(m.s, rule=_x3dot)

    def _x4dot(m, s):
        cur = track.get_curvature(s)
        return m.dx4ds[s] == ((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    m.x4dot = Constraint(m.s, rule=_x4dot)

    def _x5dot(m, s):
        cur = track.get_curvature(s)
        return m.dx5ds[s] == (m.x0[s] * sin(m.x3[s]) + m.x1[s] * cos(m.x3[s]))*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    m.x5dot = Constraint(m.s, rule=_x5dot)

    def _u0dot(m, s):
        cur = track.get_curvature(s)
        return m.du0ds[s] == m.du0[s] * ((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    m.u0dot = Constraint(m.s, rule=_u0dot)

    def _u1dot(m, s):
        cur = track.get_curvature(s)
        return m.du1ds[s] == m.du1[s] * ((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    m.u1dot = Constraint(m.s, rule=_u1dot)

    # # rate constraints on acceleration
    # def _u0dotmax(m, s):
    #     cur = track.get_curvature(s)
    #     return m.du0ds[s] <= a_rate_max*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    # m.i0dotub = Constraint(m.s, rule=_u0dotmax)
    # def _u0dotmin(m, s):
    #     cur = track.get_curvature(s)
    #     return m.du0ds[s] >= a_rate_min*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    # m.i0dotlb = Constraint(m.s, rule=_u0dotmin)

    # # rate constraints on steering
    # def _u1dotmax(m, s):
    #     cur = track.get_curvature(s)
    #     return m.du1ds[s] <= steer_rate_max*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    # m.i1dotub = Constraint(m.s, rule=_u1dotmax)
    # def _u1dotmin(m, s):
    #     cur = track.get_curvature(s)
    #     return m.du1ds[s] >= steer_rate_min*((1 - cur * m.x5[s]) /(eps+m.x0[s] * cos(m.x3[s]) - m.x1[s] * sin(m.x3[s])))
    # m.i1dotlb = Constraint(m.s, rule=_u1dotmin)

    # Variable track width
    if not constant_width:
        def _eymax(m, s):
            _w = float(track.left_width(s)) - track_tightening
            return m.x5[s] <= _w
        m.eymax = Constraint(m.s, rule=_eymax)
        def _eymin(m, s):
            _w = -(float(track.right_width(s)) - track_tightening)
            return m.x5[s] >= _w
        m.eymin = Constraint(m.s, rule=_eymin)

    if raceline_to_avoid is not None:
        # racing constraints: t2(s) + ey2(s) >= t1(s) + ey1(s) + buffer
        buffer = 0.5
        def _raceConstraint(m,s):
            m1x4, m1x5 = getValues(raceline_to_avoid, s)
            #return m.x4[s] + m.x5[s] >= m1x4 + m1x5 + buffer
            #return m.x5[s] <= m1x5 - 0.1
            return m.x5[s]+m1x4 <= m1x5 + m.x4[s] - 0.1

        m.rc = Constraint(m.s, rule=_raceConstraint)

    # inital and terminal conditions
    def _init(m):
        if track.circuit:
            yield m.x0[0] == m.x0[track.track_length]
            yield m.x1[0] == m.x1[track.track_length]
            yield m.x2[0] == m.x2[track.track_length]
            yield m.x3[0] == m.x3[track.track_length]
            yield m.x5[0] == m.x5[track.track_length]
        yield m.x4[0] == 0

    m.init_conditions = ConstraintList(rule=_init)

    # Discretize model using radau or finite difference collocation
    TransformationFactory('dae.collocation').apply_to(m, nfe=200, ncp=10, scheme='LAGRANGE-LEGENDRE') #STANDARD METHOD
    # TransformationFactory('dae.collocation').apply_to(m, nfe=500, ncp=50, scheme='LAGRANGE-LEGENDRE'  )
    # TransformationFactory('dae.collocation').apply_to(m, nfe=200, ncp=10, scheme='LAGRANGE-RADAU'  )
    #TransformationFactory('dae.collocation').apply_to(m, nfe=100, ncp=10, scheme='LAGRANGE-RADAU')
    # TransformationFactory('dae.finite_difference').apply_to(m, nfe=1000)
    # TransformationFactory('dae.finite_difference').apply_to(m, nfe=3000)
    # TransformationFactory('dae.finite_difference').apply_to(m, nfe=10000)

    # Solve algebraic model
    solver = SolverFactory('ipopt')
    # Solver options
    solver.options['max_iter'] = 1000
    # solver.options['linear_solver'] = 'ma27'
    # solver.options['mu_strategy'] = 'adaptive'
    #solver.options = {'tol': 1e-6,
    #                  'mu_init': 1e-8,
    #                  'bound_push': 1e-8,
    #                 'halt_on_ampl_error': 'yes'}

    solver.options = {'tol': 1e-2,
                      'mu_init': 1e-6}
    results = solver.solve(m, tee=True)

    # Evaluate solution at discretization points
    s_vec = list(sorted(m.s.data()))

    raceline = {'t': np.zeros(len(s_vec)),
                'x' : np.zeros(len(s_vec)),
                'y' : np.zeros(len(s_vec)),
                'psi' : np.zeros(len(s_vec)),
                's' : np.zeros(len(s_vec)),
                'e_y' : np.zeros(len(s_vec)),
                'e_psi' : np.zeros(len(s_vec)),
                'v_long' : np.zeros(len(s_vec)),
                'v_tran' : np.zeros(len(s_vec)),
                'psidot' : np.zeros(len(s_vec)),
                'u_a': np.zeros(len(s_vec)),
                'u_s': np.zeros(len(s_vec))}

    for j in range(len(s_vec)):
        s = s_vec[j]

        local_pos = (s, value(m.x5[s]), 0)
        (x, y, psi) = track.local_to_global(local_pos)

        raceline['t'][j]        = value(m.x4[s])
        raceline['v_long'][j]   = value(m.x0[s])
        raceline['v_tran'][j]   = value(m.x1[s])
        raceline['psidot'][j]   = value(m.x2[s])
        raceline['s'][j]        = s
        raceline['e_y'][j]      = value(m.x5[s])
        raceline['e_psi'][j]    = value(m.x3[s])
        raceline['x'][j]        = x
        raceline['y'][j]        = y
        raceline['psi'][j]      = psi
        raceline['u_a'][j]      = value(m.u0[s])
        raceline['u_s'][j]      = value(m.u1[s])

    DF = pd.DataFrame()
    # for v in m.component_objects(Var, active=True):
    #     for index in v:
    #         DF.at[index, v.name] = value(v[index])

    return raceline, DF

def getValues(DF, s):
    m1x4 = np.interp(s, DF.index, DF['x4'].values)
    m1x5 = np.interp(s, DF.index, DF['x5'].values)

    return m1x4, m1x5

def plot_racelines(track, racelines, colors):
    import matplotlib.pyplot as plt
    import os

    fig_xy = plt.figure(figsize=(20, 20))
    ax = fig_xy.gca()
    track.plot_map(ax)

    fig_ts = plt.figure(figsize=(50, 30))
    ax_vx = fig_ts.add_subplot(6, 1, 1)
    ax_vx.set_ylabel('vel long')
    ax_vy = fig_ts.add_subplot(6, 1, 2)
    ax_vy.set_ylabel('vel lat')
    ax_pd = fig_ts.add_subplot(6, 1, 3)
    ax_pd.set_ylabel('yaw rate')
    ax_ey = fig_ts.add_subplot(6, 1, 4)
    ax_ey.set_ylabel('e_y')
    ax_a = fig_ts.add_subplot(6, 1, 5)
    ax_a.set_ylabel('accel cmd')
    ax_s = fig_ts.add_subplot(6, 1, 6)
    ax_s.set_ylabel('steer cmd')
    ax_s.set_xlabel('s')

    for r, c in zip(racelines, colors):
        vs = np.cos(r['v_long']) - np.sin(r['v_tran'])
        speed = np.sqrt(np.power(r['v_long'],2)+np.power(r['v_tran'],2))
        sc = ax.scatter(r['x'], r['y'], c=speed)
        ax.plot(r['x'], r['y'], c)

        ax_vx.plot(r['s'], r['v_long'], c)
        ax_vy.plot(r['s'], r['v_tran'], c)
        ax_pd.plot(r['s'], r['psidot'], c)
        ax_ey.plot(r['s'], r['e_y'], c)
        ax_a.plot(r['s'], r['u_a'], c)
        ax_s.plot(r['s'], r['u_s'], c)

        laptime = r['t'][-1]
        print(f'Lap time: {laptime}')

    ax.set_aspect('equal')
    plt.colorbar(mappable=sc, ax=ax)
    ax.set_title(f'time: {laptime:.2f} s')

    save_plot = False
    if save_plot:
        fig_xy.savefig(os.path.join(os.path.expanduser('~'), 'Pictures', 'raceline.png'))
        fig_ts.savefig(os.path.join(os.path.expanduser('~'), 'Pictures', 'raceline_state_input.png'))

    plt.draw()
    plt.show()
